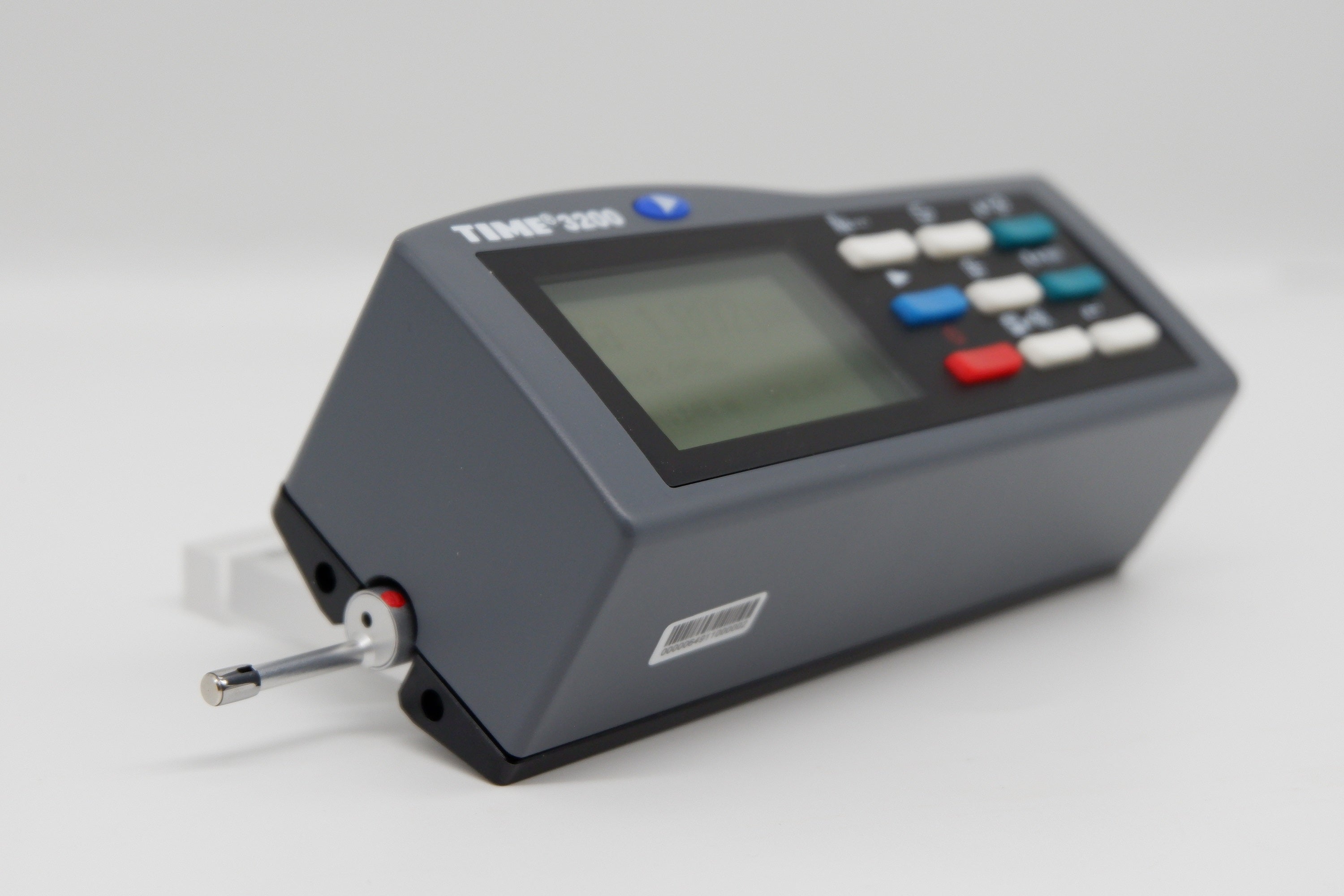

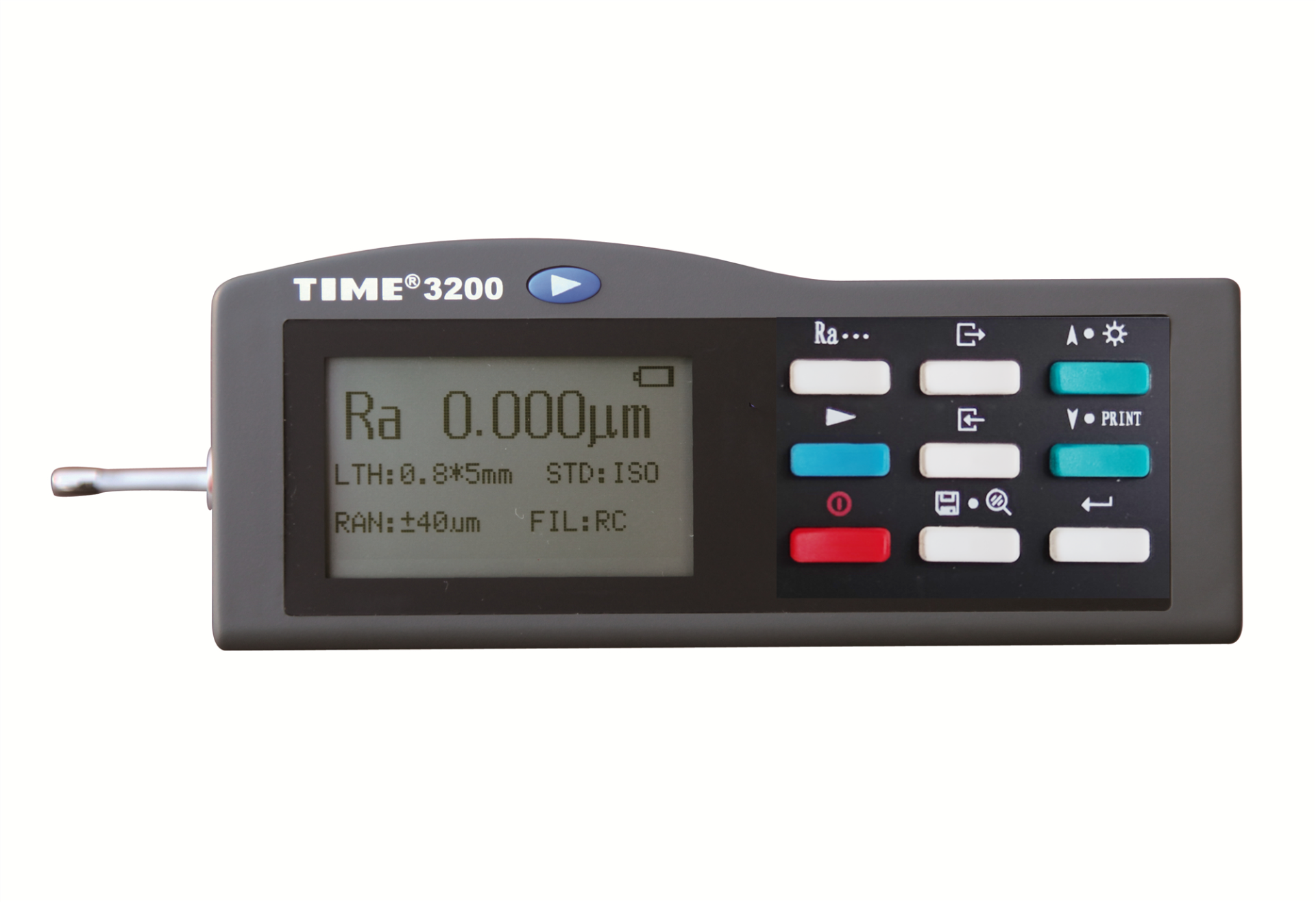

The TIME 3200 Surface Roughness Tester (TR200) is a cost-effective roughness measuring device which supports multiple parameters. It is small and light with excellent accuracy. It can be equipped with several pickups for different applications. Well suited for on-site roughness testing.
|
Model |
TIME ® 3200 |
TIME ® 3202 (request for quote) |
|
Roughness parameters |
Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv,R3z, RS, RSm, RSk, Rmr, |
Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm,RSk, Rmr, Rpc, Rk, Rpk, Rvk, Mr1, Mr2 |
|
Assessed profiles |
Roughness profile (R) Primary profile (P) |
|
|
Measuring system |
Metric, imperial |
|
|
Display resolution |
0.001 μ m |
|
|

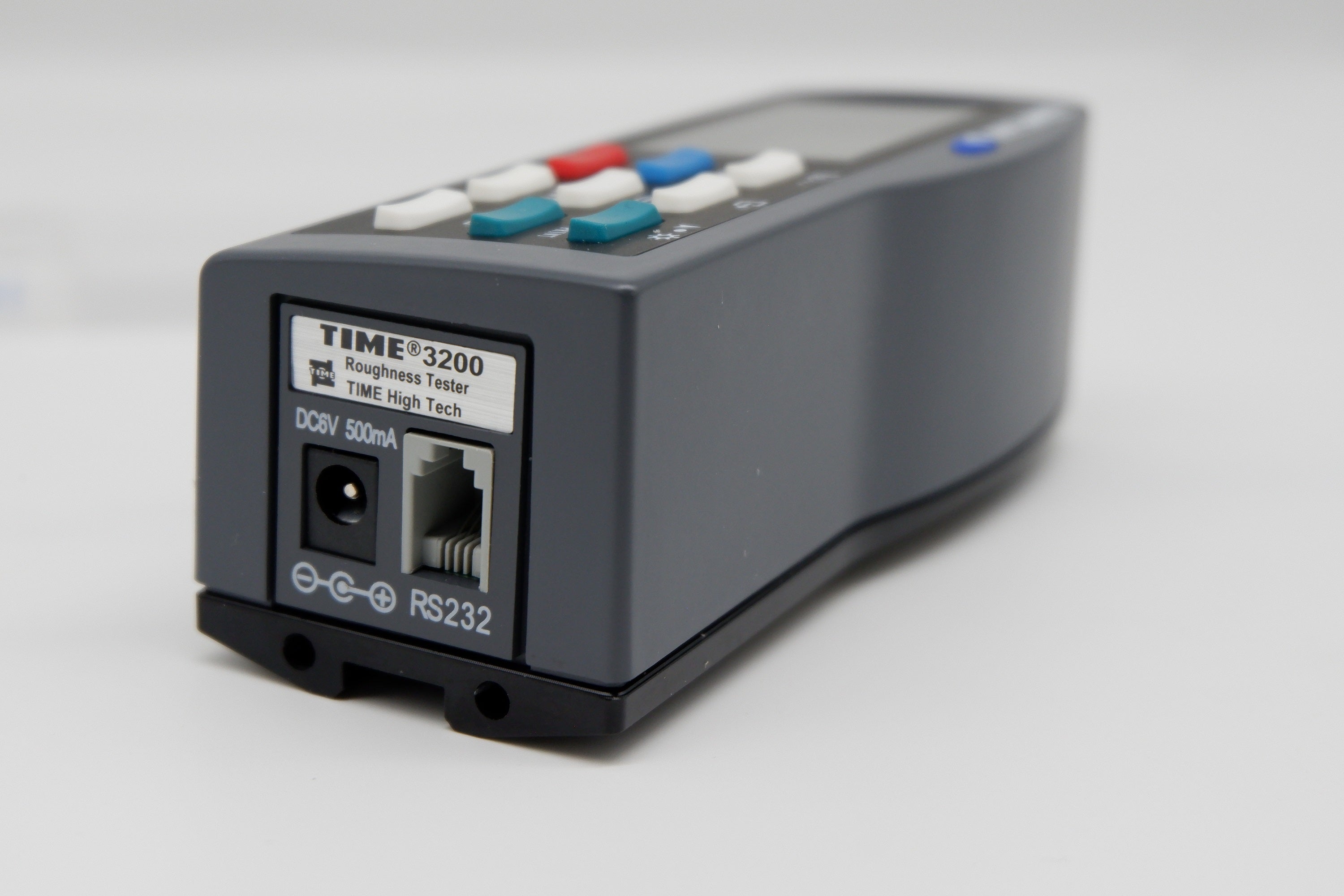

Data output |
RS232 |
|
|
Pickup measuring range |
±20μ m, ±40μ m, ±80μ m |
|
|
Cutoff length (L) |
0.25mm / 0.8mm / 2.5mm/Auto |
|
|
Evaluation length |
1~5L (selectable) |
1~5L (selectable) |
|
Tracing length |
3-7L(selectable) |
3-7L(selectable) |
|
Digital filter |
RC, PC-RC, Gauss, D-P |
|
|
Max. tracing length |
17.5mm/0.71inch |
|
|
Min. tracing length |
1.3mm/0.052inch |
|
|
Pick-up |

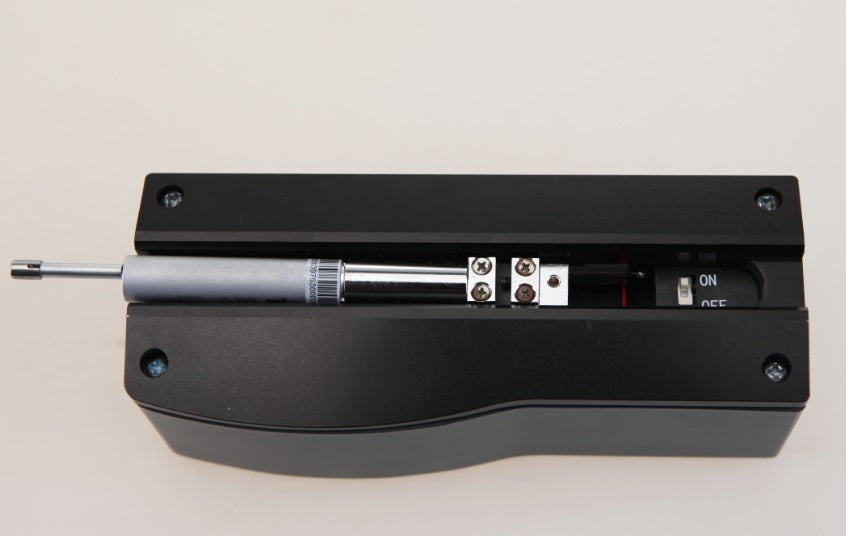

Standard pickup TS100, inductive, diamond stylus radius 5μm, angle of stylus 90° |
|
|
Accuracy |
≤±10% |
|
|
Repeatability |
≤6% |
|
|
Power |
Li-ion battery rechargeable |
|
|
Dimensions (mm) |
140×52×48 |
|
|
Weight (g) |
440 |
|
